That’s why ServoInput includes signal validation and buffering. If the signal is noisy then the data will get corrupted and none of these features matter. Great for controlling addressable LEDs (8 bit unsigned), a USB joystick (16-bit signed), or any other conceivable range. In addition to the standard angle (degree) and percentage functions, the library also features a generic remapping function that will map the servo’s positional data between any two long values. Speaking of, the library features flexible remapping functions to work the positional data into whatever form you need it. This also helpfully restrains the output ranges when remapping to other values which prevents overflow. What’s more is that these values are used for limiting the remapped output, so pulse durations that are outside of your servo’s physical range can be ‘clipped’ and ignored. These range values are used whenever retrieving the pulse duration, so the reported angle or position will match the set angle of the motor. At any point the user can specify the minimum, maximum, or total range in microseconds. The library starts with these defaults but adds dynamic range rescaling. The majority of motors will move to their center position with a 1500 µs pulse width and have a +/- 500 µs range (1000 – 2000 µs).
#Arduino servo example update#

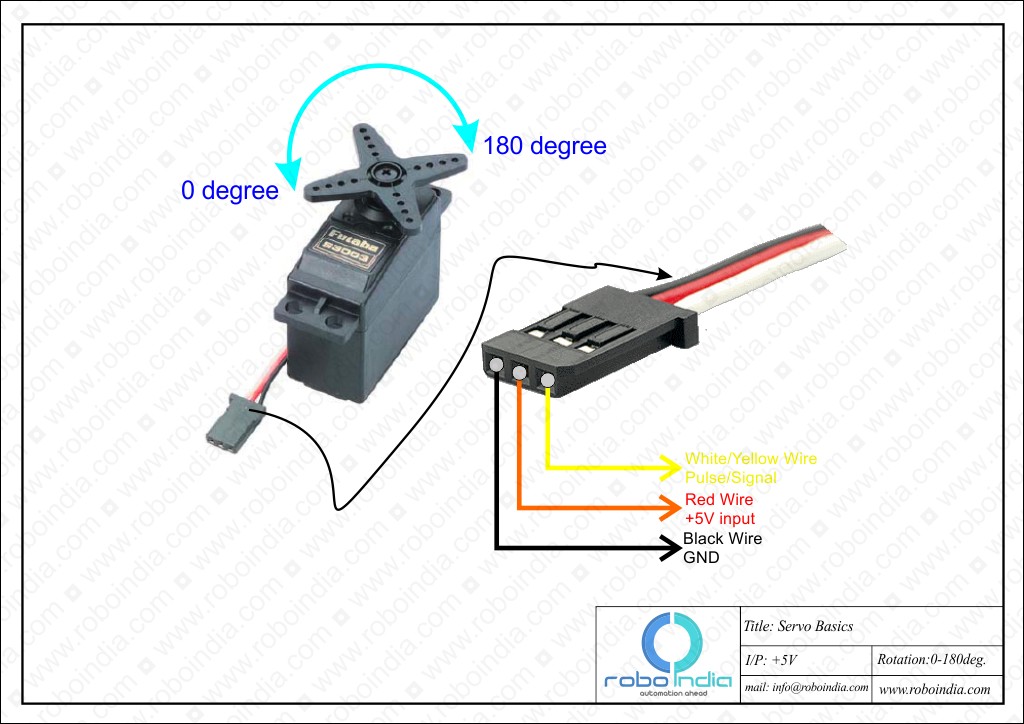

Typical PWM servo signals have a 50 Hz update frequency (20 ms) and vary the motor angle with the duty cycle.
The servo data will be available whenever you need it.
#Arduino servo example code#
It also means that you can execute other, blocking code with long delays while the servos positions are being read in the background. This means that the data collection happens in the background and is available instantaneously. Features Non-BlockingĪll ServoInputPin objects make use of external interrupts to gather the PWM data from the servos. Add the library, connect the signal wires, and go. Servo signals can be easily read in the background and remapped to a given output (USB, LEDs, motors, etc.) without any hand holding by the user. In comparison to the ‘typical’ method to read these signals, the built-in Arduino pulseIn() function, this library allows servo inputs to be: This allows you to read servo positions from robotics, RC receivers, or any other devices with servo motors.
The result is the Servo Input library, an open source solution for reading PWM servo inputs with an Arduino. The Servo Input Library #include įloat angle = servo.getAngle() // get angle of servo (0 - 180) I couldn’t find a library I liked that was interrupt-based, robust, and supported flexible output ranges and remapping. For my latest project I needed to connect an RC receiver to an Arduino and read the state of the PWM servo signals.
